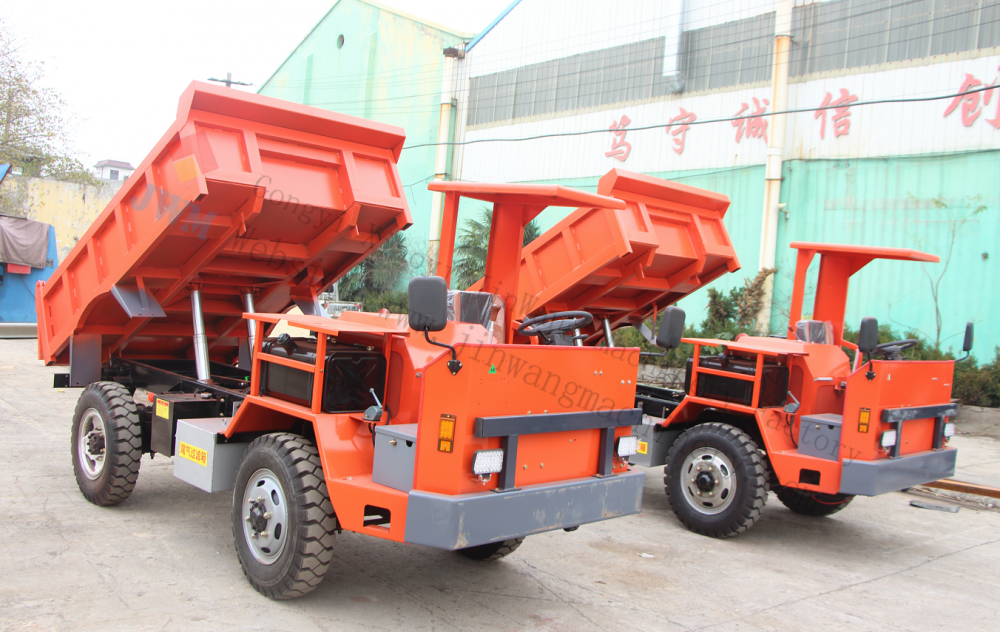

The Engineering Mini Dumper is a heavy loading truck built by our factory, which uses diesel as fuel. Engineering Mini Dumper has luxurious appearance, beautiful appearance, strong and durable, large bearing capacity and comfortable operation. It is an ideal tool for transporting sand and soil and road transportation in the mining area.
|
Main Parameters
|
|
|
|
Engine
|
Changchai 490 63HP
|
|
|
Gearbox
|
Nanjing 130 transmission with high and low speed
|
|
|
Transfer case
|
2120 transfer case
|
|
|
Axle
|
130 drive steering front axle/Isuzu drive rear axle
|
|
|
Cargo box size
|
2400*1500*450mm
|
|
|
Total size
|
4000*1500*1300mm
|
|
|
Tires
|
700-16 Wire wheel (rear single wheel)
|
|
|
Frame
|
160*60*6mm
|
|
|
Hydraulic cylinder
|
110*900mm (diameter * stroke)
|
|
|
Spring plates
|
Front: 7pcs, back8+6pcs 70*10mm(width*height)
|
|
|
Braking method
|
Air brake
|
|
|
Steering method
|
Hydraulic steering gear
|
|
|
Exhaust gas treatment
|
Water treatment
|
|
|
Steel plate thickness
|
Bottom: 6mm, side: 4mm
|
|
|
Man-machine height
|
1800mm
|
|
|
Gear mode
|
Gear line
|
|
